CARGOMASTER® Tank monitoring

Complete solution for liquid cargo monitoring and alarms

  • Monitoring all tanks and lines for ullage/level, volume, cargo density and pressure, tank temperature etc.
  • Full scope of supply of instrumentation and software from one source, including engineering and documentation through to commissioning
  • Optional integration into other systems

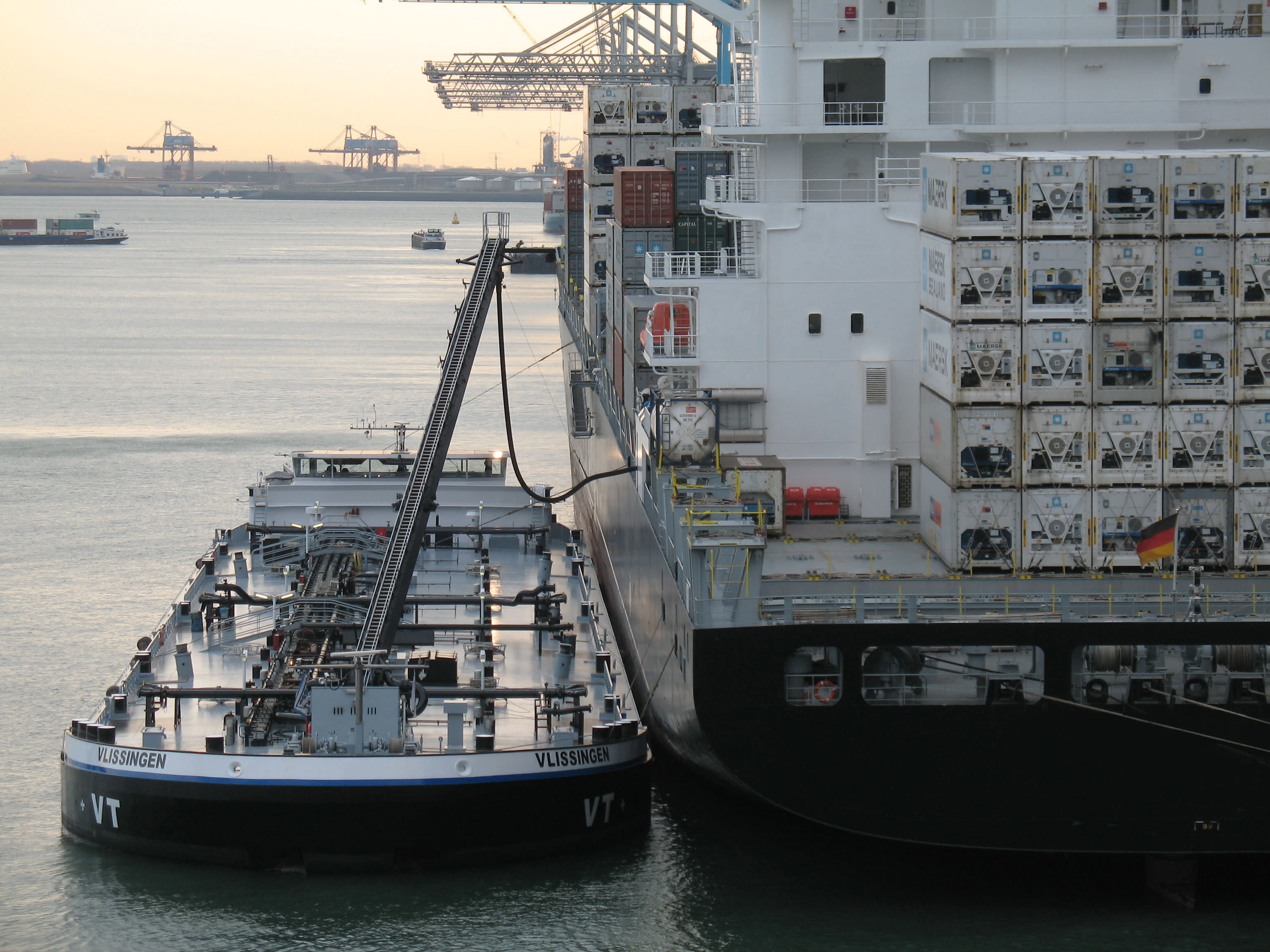

Tanker ship refuels a large container ship inside the harbour

CARGOMASTER® is a complete monitoring system for multiple tanks that has been at the technical forefront of the market since 1979. This system includes software and instrumentation that is adapted to the customer’s individual vessel applications, as well as engineering, drawings, documentation and commissioning. As a result, the CARGOMASTER® system provides readings from all tanks onboard in a user-friendly graphical interface.

Combined with our high precision OPTIWAVE Marine cargo level radar meters (FMCW), CARGOMASTER® offers unique benefits for tanker operators. In addition to tank monitoring, the system enables the monitoring of pumps and cargo lines as well as integration into other systems onboard. CARGOMASTER® can be installed on all kinds of vessel, from the smallest product tankers to the most complex chemical tankers and large VLCCs.

Highlights

  • Complete solution with application-specific software on standard marine computers
  • Optional integration into other systems
  • Intuitive and user-friendly interface
  • Multiple configurations possible for full redundancy and distribution of information
  • Can be easily interfaced to ship automation systems, vessel management systems, loading calculators etc.
  • Can be combined with onboard valve & pump management and control systems for integrated liquid cargo handling and control on tankers
  • Extensive reporting functions

Typical applications

Marine industry

  • Liquid cargo monitoring
  • For all types of vessel

Applications

Related products

OPTIWAVE-M 7400

Radar (FMCW) level transmitter for liquids and solids in the marine industry

  • Continuous, non-contact cargo level measurement
  • 24 GHz radar, Horn or Drop antenna
  • Redundant ullage indication with local display on deck
  • Closed tank cleaning and service of all components
View product details

OPTIWAVE-M 7500

Radar (FMCW) level transmitter for liquids and solids in the marine industry

  • Continuous, non-contact cargo level measurement
  • 80 GHz radar, Lens antenna (flush-mounted)
  • Very small beam angle for narrow tanks of various heights and shapes
  • Redundant ullage indication with local display on deck
View product details
