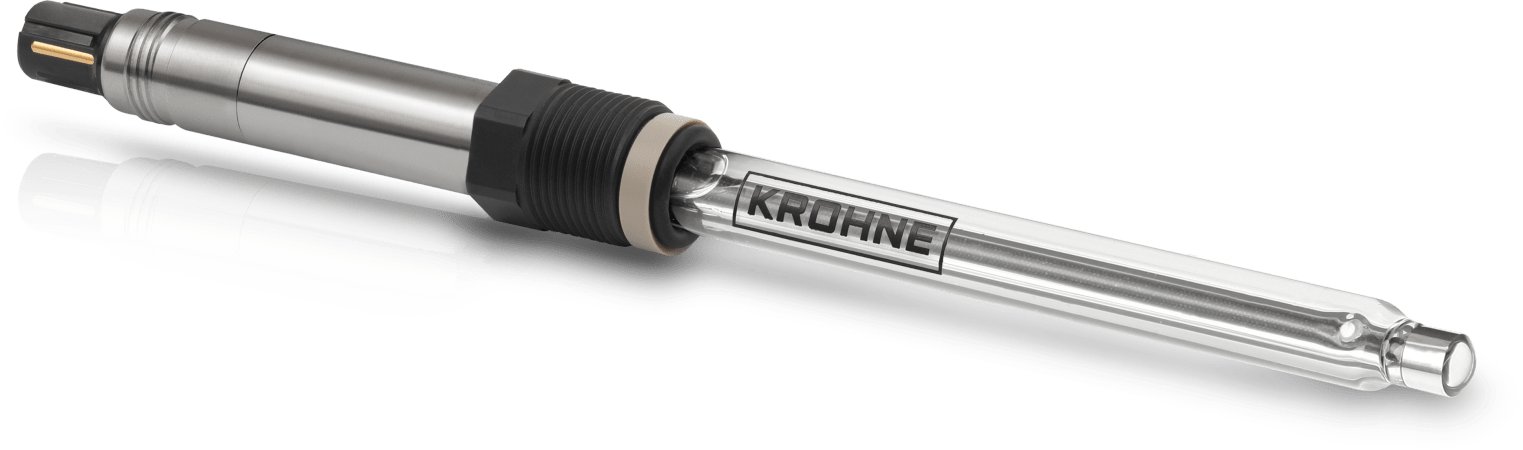

SMARTPAT ORP 8510

Potentiometric ORP sensor for water and wastewater applications

  • 2-wire loop powered, 4…20 mA/HART® 7, for direct connection to a PCS
  • Process connection: PG13.5
  • -1500…+1500 mV; Max. +70°C / +158°F; 2 bar / 30 psi
  • Glass sensor with platinum electrode, ceramic diaphragm and Pt1000 temperature sensor
  • Icon/Logo for Transmitter built-in

SMARTPAT ORP 8510 – Standard version

ORP sensor SMARTPAT ORP 8510 – Standard version

The SMARTPAT ORP 8510 is a 2-wire loop powered ORP sensor for applications with potable or process water and municipal wastewater. The sensor is equipped with a platinum electrode and ceramic diaphragm. It also comes with integrated temperature sensor (Pt1000). Offline calibration of the sensor is possible under controlled conditions, generating cost savings due to less operator time on-site and longer sensor lifetime.

The SMARTPAT ORP 8510 is part of the SMARTPAT product family - the first sensor line in the market featuring an integrated transmitter with built-in fieldbus communication (HART® 7) and current output. The real open standard enables a direct connection from the sensor to the process control system. Unlike other commercially available ORP sensors, there is no need for external transmitters. Thus, price and maintenance costs of the complete measuring point are considerably reduced.

Product highlights

  • No external transmitter needed
  • Offline calibration under controlled conditions: Cost savings due to less operator time on-site and longer sensor lifetime
  • Special reference systems for extended lifetime and a wide application range
  • With integrated Pt1000 and standard VP2 connector
  • Free of charge PACTware FDT/DTM for easy handling of offline and online configuration
  • Direct connection via standardized fieldbus (HART® 7)
  • Various mounting assemblies for easy installation and reliable handling

Typical applications

Water and wastewater industry

  • Monitoring of water and wastewater treatment
  • Monitoring of process water
  • Disinfection control
  • Reverse osmosis protection
